Non Asbestos Brass Wire Reinforced Woven Brake Lining Ship Winch Anchor Windlass
Quick Detail:Non asbestos Brass Wire Reinforced Woven Brake Lining ship winch anchor windlass
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Non asbestos Brass Wire Reinforced Woven Brake Lining ship winch anchor windlass
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We own advanced equipment, top technology and skillful workers in line with the "people-oriented, pragmatic and innovative" company concept, constantly using new technologies, new equipment, new materials, new process, and strive to do better, to develop more new friction, sealing, anti-corrosion, insulation, fire prevention materials to meet the needs of customers both domestic and abroad. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, the product quality is in line with national standards based on a strict inspection process, and has been sold to more than 20 provinces and regions, more than a dozen countries and regions. The products have been selling well in the Americas, Europe and Southeast Asia, and are favored by domestic and foreign customers!
Non asbestos Brass Wire Reinforced Woven Brake Lining ship winch anchor windlass
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Specifications:Non asbestos Brass Wire Reinforced Woven Brake Lining ship winch anchor windlass
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Competitive Advantage:Non asbestos Brass Wire Reinforced Woven Brake Lining ship winch anchor windlass
Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
Product Tags:
|
|

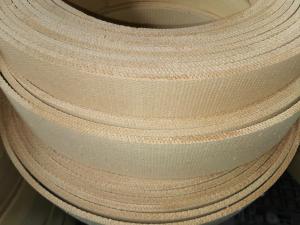

Brass Wire Non Asbestos Woven Brake Lining Reinforced For Windlass Images
|
