Non-Asbestos Woven Industrial Brake Lining Roll Brake Liner without Asbestos
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fibre, Aramid fibre ect. All yarns are woven by advanced loom machinery&equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship. Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Quick Detail:Non-Asbestos Woven Industrial Brake Lining Roll Brake Liner without Asbestos
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Non-Asbestos Woven Industrial Brake Lining Roll Brake Liner without Asbestos
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Non-Asbestos Woven Industrial Brake Lining Roll Brake Liner without Asbestos
Competitive Advantage:Brass Wire Reinforced Asbestos Free Brake Lining Woven Lining Rolls Wire Inside Product
Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86) 13771895935 to get more informations
Product Tags:
|
|

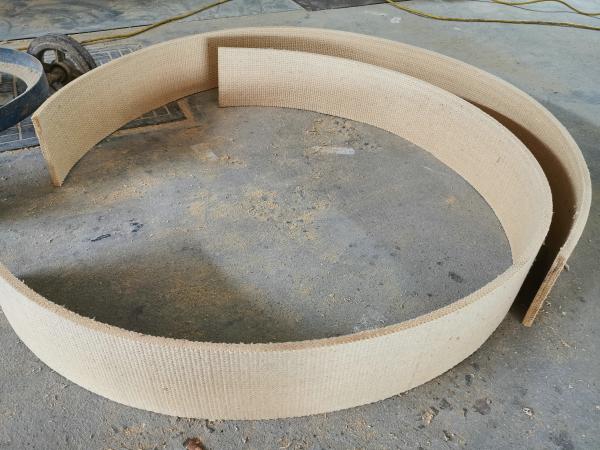

Industrial Non Asbestos Yarns Brake Lining Roll Melamine Resin Images
|
