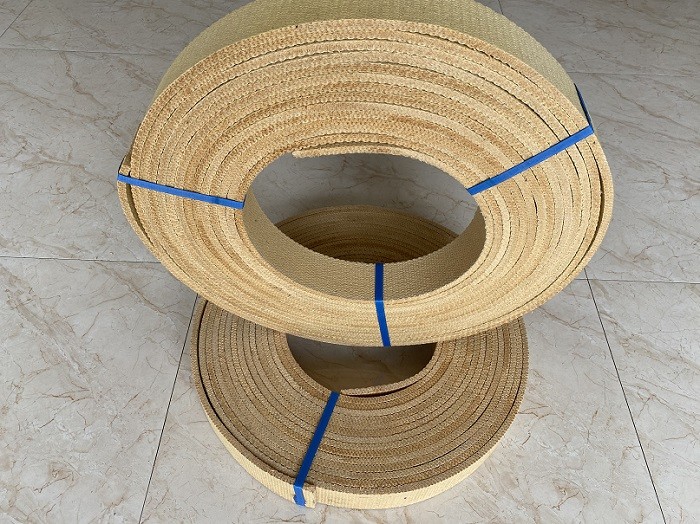

200 Degree Anchor Windlass Woven Brake Lining Roll

Name: 200 Degree Anchor Windlass Woven Brake Lining Roll
Brand: DALU
Price: 1 USD

China 200 Degree Anchor Windlass Woven Brake Lining Roll wholesale

Brand Name : DALU

Model Number : BXS-Y

Certification : GB/T 19001-2016/ISO 9001:2015

Place of Origin : ningbo China

MOQ : 0.5 Tons

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Tons

Delivery Time : 6 weeks after down payment

Packaging Details : exporting wooden case

Product Name : Woven Brake Lining with Resin

Product Color : Brown

Application : Anchor

Size : 10, 15, 20 meters/roll

Material : brass wire, resin, viscose,

Type : BXS-M

woven : woven brake lining

Contact Now

Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll woven brake lining

woven brake lining roll is made from viscose fiber, brass and melamine resin. woven brake lining roll is high flexibility, good wear rate, stable friction coefficient and without any environment pollution.

Applied field widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.

200 Degree Anchor Windlass Woven Brake Lining Roll

Quick Detail:

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Specifications:

Temperature	Coefficient of friction(μ)	Wear rate(v)(cm³/N.m)
100℃	0.35~0.65	≤0.7 x 10^-7
150℃	0.35~0.65	≤1.1 x 10^-7
200℃	0.30~0.60	≤1.5 x 10^-7
250℃	0.25~0.60	≤2.5 x 10^-7
